Technical parameter description of 250 ton metal strapping machine
|* * Nominal pressure * * | 250 tons (compressible high-strength scrap metal)|
|* * Hourly processing capacity * * | 3 tons/hour (scrap metal)|
|* * Packaging size * * | 500 × 500 millimeters (length × width), height can be adjusted according to needs (usually 400-600 millimeters)|
|* * Motor configuration * * | 2 units x 37 kW (total power 74 kW)
Main voltage motor: 37kW
Hydraulic pump motor: 37kW (or split drive)|
|* * Cooling method * * | Water cooling system (used for hydraulic oil and motor heat dissipation to ensure long-term stable operation)|
|* * Applicable materials * * | Metal waste such as scrap iron, scrap steel, scrap aluminum, scrap copper, and scrap car dismantling parts|
|* * Control System * * | Electrical Control Cabinet (It is recommended to have PLC automatic control to achieve one click operation)|
|* * Hydraulic System * * | High pressure hydraulic system ensures stable output of 250 tons of pressure|
|* * Structural Features * * | Thick steel plate welded body, high rigidity design, impact resistance, long service life|
Advantages and Highlights
-Efficient and energy-saving: Equipped with dual 37 kW motors and a water cooling system, it effectively prevents overheating and supports continuous operation.
-* * High packing density * *: 500 × 500mm packaging blocks, in compliance with international transportation and steel plant recycling standards.
-Strong stability: The water cooling system extends the service life of equipment and reduces the failure rate.
-* * Suitable for large-scale recycling enterprises * *: Processing 3 tons per hour, suitable for medium to large waste metal recycling stations or renewable resource companies.
⚠️ Precautions (Selection Suggestions)
1. * * Power Requirements * *: Confirm whether the on-site power supply voltage matches (such as 380V, 3-phase 5-wire);
2. * * Hydraulic oil model * *: It is recommended to use anti-wear hydraulic oil and replace it regularly;
3. * * Cooling water system * *: A circulating water tower or cooling water tank should be equipped to ensure that the water temperature is ≤ 40 ℃;
4. * * Installation foundation * *: requires anchor bolts for fixation, with a ground bearing capacity of ≥ 3 tons/㎡;
5. * * Safety Protection * *: Equipped with emergency stop button, safety light barrier, and protective door interlock device.

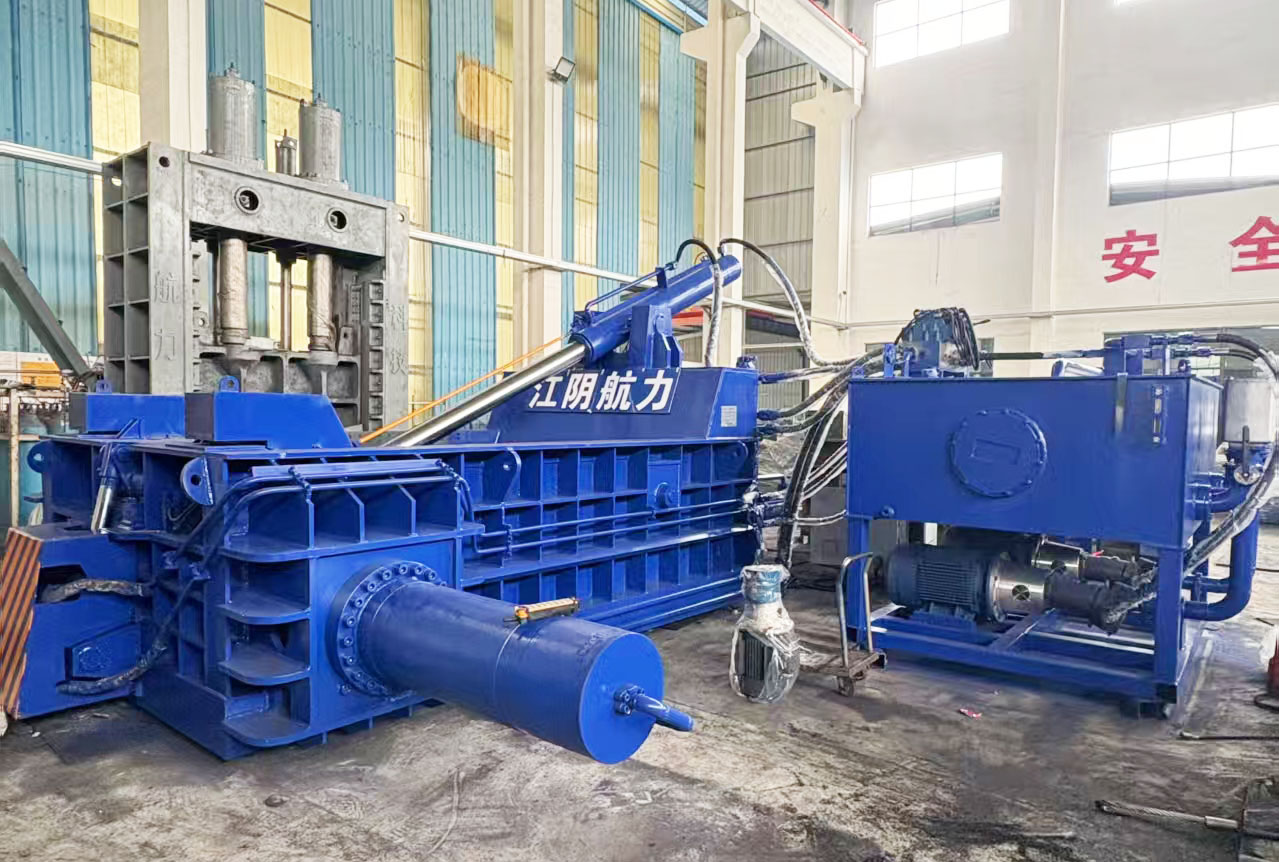

**Regarding the 250 ton metal baler:**
-* * Equipment specifications * *: The 250 ton metal strapping machine is a large-scale hydraulic strapping equipment, suitable for high-strength compression strapping of metal waste such as scrap iron, scrap steel, scrap aluminum, scrap copper, etc., for easy transportation and reuse.
-* * Core advantages * *:
-High pressure packaging force: 250 tons of pressure ensures that metal materials are tightly compressed, improving transportation efficiency and storage space utilization;
-Hydraulic system stability: using imported or high-quality hydraulic components, smooth operation, low failure rate;
-High degree of automation: It can achieve integrated operation of automatic feeding, compression, and bundling, reducing manual intervention;
-Durable and sturdy structure: The entire machine is welded with high-quality steel and undergoes aging treatment to extend its service life;
-Complete safety protection: equipped with multiple safety protection devices, such as emergency stop button, photoelectric protection, threshold switch, etc.
**Market coverage:**
Jiangyin Hangli Technology Co., Ltd.'s products have been exported to multiple countries and regions around the world, including but not limited to:
-Southeast Asia: Vietnam, Thailand, Malaysia, Indonesia;
-Middle East: United Arab Emirates, Saudi Arabia, Iran;
-Europe: Germany, Italy, Poland, Spain;
-North America: United States, Canada;
-South America: Brazil, Argentina;
-Africa: South Africa, Egypt, Kenya.
With high-quality products and a comprehensive after-sales service system, Hangli Technology has established a good brand reputation in the international metal recycling industry.
